A double suction pump, categorized as a type of water pump, proves its mettle in scenarios demanding the handling of substantial fluid volumes and robust suction capabilities. Its prowess is particularly harnessed when confronted with extended pipeline lengths or elevated pipe heights, necessitating dependable suction performance. Let’s delve into the realm of these pumps, uncovering their distinctive attributes, applications, and the pivotal advantages they offer.

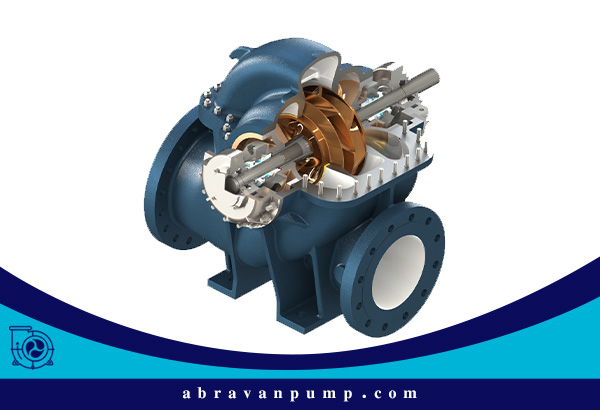

Deconstructing the Design of Double Suction Pumps
Harnessing a horizontal, single-stage configuration, these water pumps exude a spiraling aesthetic in their appearance. Operated by the force of centrifugality, they boast a design that facilitates effortless replacement of worn-out rings, ensuring the seamless interchangeability of rotating components.
Central to the design is the impeller, a closed radial type featuring dual fluid inlets. This unique construction shields the shafts against fluid leakage while endowing the bearings with automated lubrication, obviating the need for frequent maintenance.
Technical Specifications

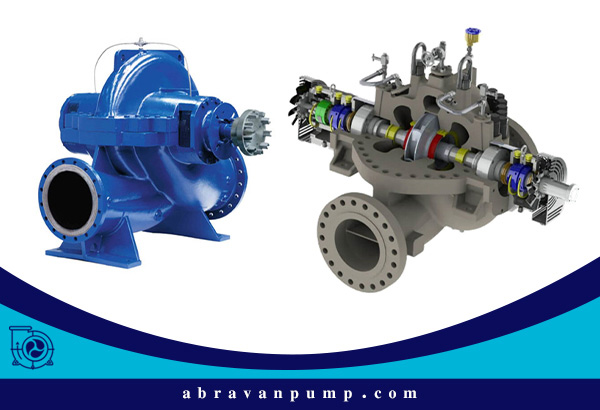

Engineered in diverse specifications to cater to your specific requisites, these pumps offer a gamut of options to choose from. Constructed from an array of materials, the stainless-steel variant shines through with its exceptional corrosion resistance and premium quality. Their outlet diameter spans from 80 to 350 millimeters, with a water delivery capacity ranging between 90 and 3500 cubic meters per hour.
Boasting the ability to draw fluid or water from depths of up to 200 meters, these pumps emerge as an ideal contender for even the most profound water wells. Functioning seamlessly in environments reaching temperatures of 105 degrees Celsius, they withstand test pressures of up to 25 bars.
Applications of Double Suction Pumps

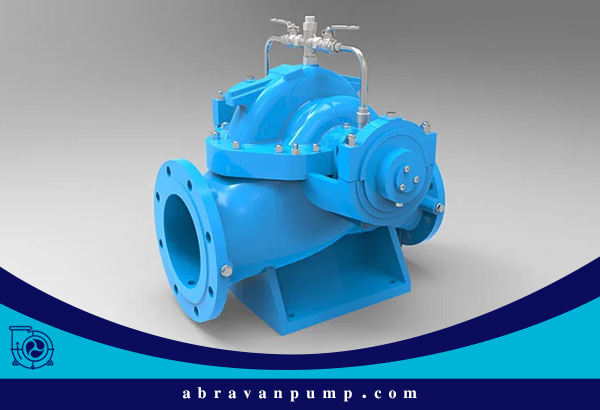

The versatility of this product spans across various industries. While single-suction pumps find their niche in activities like agricultural water pumping, double-suction pumps fill the void in industries that necessitate more than what single-suction counterparts can offer. Sectors such as mining, power generation, municipal water supply, and a broader spectrum of domains benefit from the prowess of double suction pumps. The utility of these pumps also extends to:
- Water supply pumping stations
- Industrial water supply systems
- Sewage systems and petrochemical industries
- Cooling water supply
- Factory water supply
- Industrial water treatment systems
- Firefighting applications
- Marine systems
- Refinery general services
- Agriculture and irrigation
- Drainage systems
Advantages of Embracing Double Suction Pumps

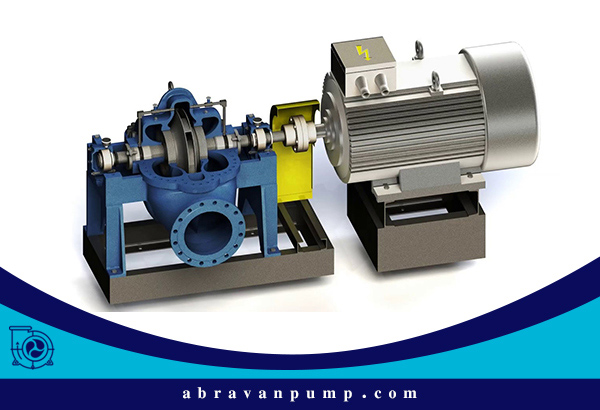

Why should we embrace these pumps? The answer unfurls through an exploration of six paramount advantages intrinsic to this technology.
Efficient High-Speed Fluid Transfer in Compact Form
Navigating the realm of high-speed water transfer, these pumps shine in environments demanding uniform performance conditions. While the use of single suction pumps for high-speed applications necessitates large dimensions and impeller diameters, the double suction counterparts allow for a more streamlined, compact design. The outcome? Enhanced rotational speed and volumetric efficiency coupled with reduced size and weight.
Extended Bearing Lifespan
Guided by a design that champions longevity, the bearings within these pumps benefit from continual grease lubrication throughout their operational lifespan. This robust structure ensures extended bearing life and facilitates straightforward bearing inspection, repair, or replacement as needed
Elevated Impeller Efficiency
The symmetrical double-suction design alleviates axial forces on the impeller, culminating in superior fluid flow compared to single-suction peers. However, this innovation comes with considerations—while hydraulic efficiency prevails, it’s met with a potential for heightened wear due to axial thrust during fluid entry. Resourceful impeller designs accommodate this complexity, bolstered by the inclusion of wear rings.
Optimized Pump Efficiency and Acoustic Performance
Silent efficiency becomes the hallmark of these pumps. Even in the face of wear and tear on rings and bearings, the capacity for replacement and inspection ensures sustained efficiency. The pump’s inner sanctum, sporting smooth surfaces, synergizes with the efficiency agenda.
Ingenious Chamber Blueprint
The chamber design stands as a testament to ingenuity, characterized by a co-axial inlet and outlet configuration. Minimal bearing separation and a concise shaft bring operational benefits, fortified by fluid-tight seals that preclude leakage. The flexibility of rotation direction without part replacement further underscores its prowess. For applications demanding elevated head pumping, the option of a double volute chamber delivers optimal fluid transfer.
Seamless Maintenance and Durability
Shielded against corrosive influences, the pump shaft underscores longevity by evading direct fluid contact. Minimal vibration is generated during operation, assuring a serene environment. Replaceable bushings on the shaft augment the ease of maintenance. Components within the pump, thoughtfully designed to avert direct fluid interaction, cement their durability.
Conclusion
In summation, double suction pumps materialize as the answer when unrelenting flow necessitates augmentation. Their emergence is fitting when single suction counterparts can’t measure up to the requisite flow rate. The outcome is amplified efficiency, obviating the necessity for unwieldy proportions and serving as a robust alternative in cases where single suction offerings fall short. Anchored in centrifugal force, these pumps emerge as a beacon of efficacy in the world of fluid dynamics.
